Counter-UAS Solutions

Ring Series

Scalable counter-drone defense for every threat level. Three configurations, one combat-proven platform.

Choose Your Configuration

One Platform. Three Levels of Protection.

Start with the configuration that meets your current needs and upgrade as threats evolve.

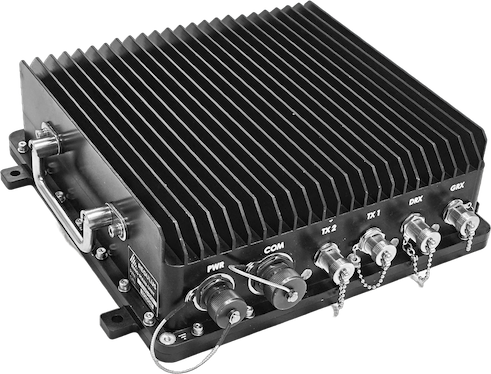

Ring 3

Foundation Defense

Ring 3

Multi-constellation GNSS spoofing across GPS, GLONASS, Galileo, and BeiDou. L1 + L2/L5 frequency bands. Push-back, hold, and static modes. 1.5 km omnidirectional range. TRL-9 combat-proven.

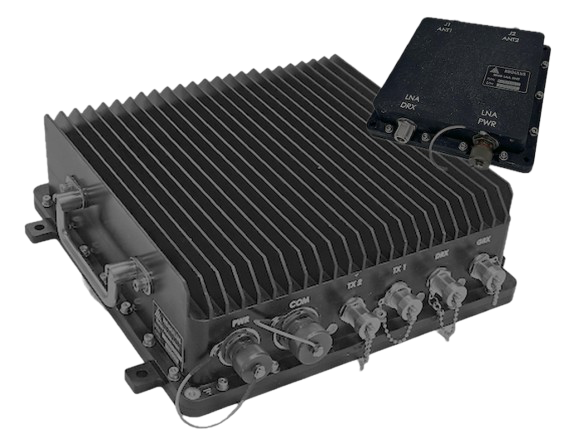

Ring 4

Enhanced Detection

Ring 4

All Ring 3 capabilities plus passive RF detection system. AI-powered threat classification with >98% detection rate. 1 km detection range with automated response capability.

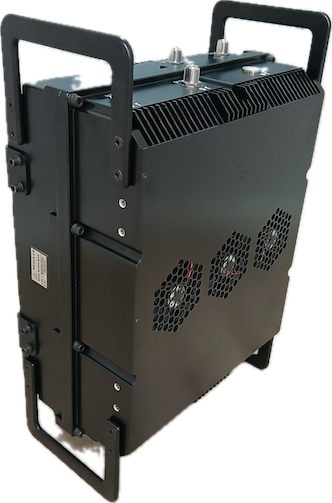

Ring 5

Complete Solution

Ring 5

Full detect-and-defeat system. All Ring 4 capabilities plus 5-band RF jamming at 47dBm per channel. Counters FPV and non-GNSS drones with integrated layered defense.

Comparison

Configuration at a Glance

Capability Ring 3 Ring 4 Ring 5
GNSS Spoofing ✓ ✓ ✓
RF Detection - ✓ ✓
RF Jamming - - ✓
Threat Coverage GNSS-dependent drones GNSS drones + Early warning All drone types
Detection Range N/A Up to 1.5 km Up to 1.5 km
Mitigation Range 1.5 km 1.5 km Up to 1.5 km
Weight 7 kg 7 kg 30 kg
Power Consumption 60W 60W 700W + 60W
Automated Operation Optional ✓ ✓
Best For Basic protection Enhanced awareness Complete defense

Scalable Protection

Future-Proof Your Investment

Start with the configuration that meets your current needs and upgrade as threats evolve. Software upgrades and hardware add-ons available for seamless capability expansion.

3

Ring 3

GNSS Spoofing Foundation

4

Ring 4

+ RF Detection & Classification

5

Ring 5

+ Datalink Jamming & Full Defeat

Specifications

Built for the Field

Environmental

IP67 ingress protection. Operating temperature -40°C to +50°C. MIL-STD compliant. 30,000 hours MTBF.

Integration

JSON-based API. Regulus C2 software. Third-party integration support. Network deployment ready.

MIL-STD Compliance

MIL-STD-461E (EMC), MIL-STD-810G (Environmental), MIL-STD-1275E (Power), MIL-DTL-38999-III (Connectors).

Deployment Options

Stationary installation, vehicle-mounted, naval vessels, portable manpack configuration with battery operation.
